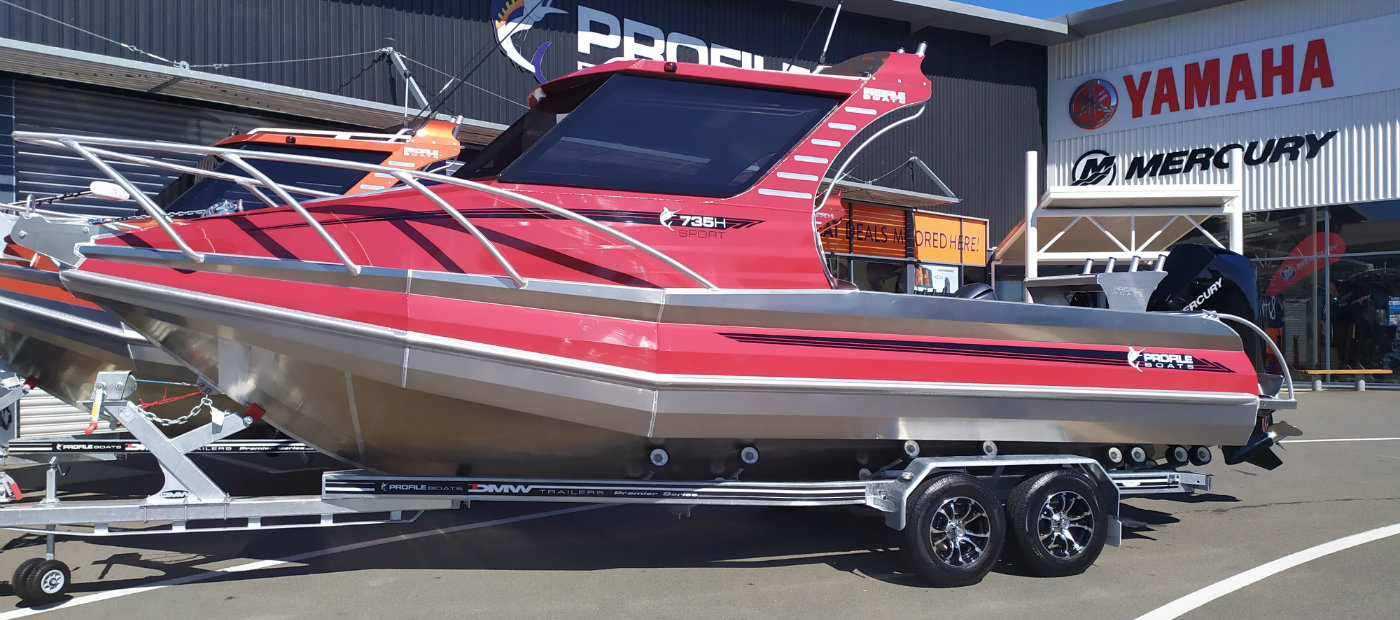

Profile Boats 735H

Attribute

GL Spec

Sport Spec

Limited Spec

Platinum Spec

Dealer List NZD

NZD $167,318

NZD $200,366

NZD $224,999

NZD $269,841

Buy Direct and Save

NZD -$7,500

Your Factory Direct Buy Price

NZD $159,818

NZD $192,866

NZD $217,499

NZD $262,341

Recommended HP Yamaha or Mercury

225hp

250hp

Length overall excl engine

7.60m

Length Metres (Feet)

7.35m (24')

Deck Area

5.20m3

5.2m3

Max safe loading, Adults

Height on Trailer (Approx)

3.15m

Maximum HP Yamaha or Mercury

260hp

Deadrise Rear/Entry/Forward

17/26/36

Foam Filled Hull and Chambers

Optional

Standard

Tow Weight (Approx))

2250kg

2300kg

2400kg

2450kg

Length on Trailer, overall

8.85m

Width on Trailer

2.45m

Beam External

2.34m

Beam Floor Internal

2.05m

Hull Thickness

6mm

Tube Thickness

3mm

Internal Fuel Tank with sending unit

400L

Transom Height

25' or 20' (twin)

General

Sport

Limited

Platinum

Steering – Hydraulic

view

Standard

Under Floor Fish Bin/Storage

view

Standard

Gas strut fish bin lid

view

Optional

Standard

Bollard Foredeck

view

Standard

Cleats X 4 Stern and Midship

view

Standard

Large Bow Rail

view

Optional

Standard

Alloy Fairlead and Roller

view

Standard

Lights Navigation and Mast. LED

view

Standard

Anchor Chain & Warp

view

Optional

Standard

Auto Capstan Anchor winch

view

Optional

Standard

Rod Holders in pontoons

view

Standard

Side pontoon rod racks

view

Optional

Standard

Side Pontoon Storage Trays

view

Standard

Pro-deck floor with toe space

view

Standard

Pro-floor flooring panels

view

Optional

Standard

Fender Rail fully welded

view

Optional

Standard

Gunwhale Padding

view

Optional

Standard

Hatch Offshore Foredeck

view

Standard

Rocket Launcher (7) rod rack

view

Standard

Non skid walk around

view

Standard

Deck Flood Light

view

Optional

Standard

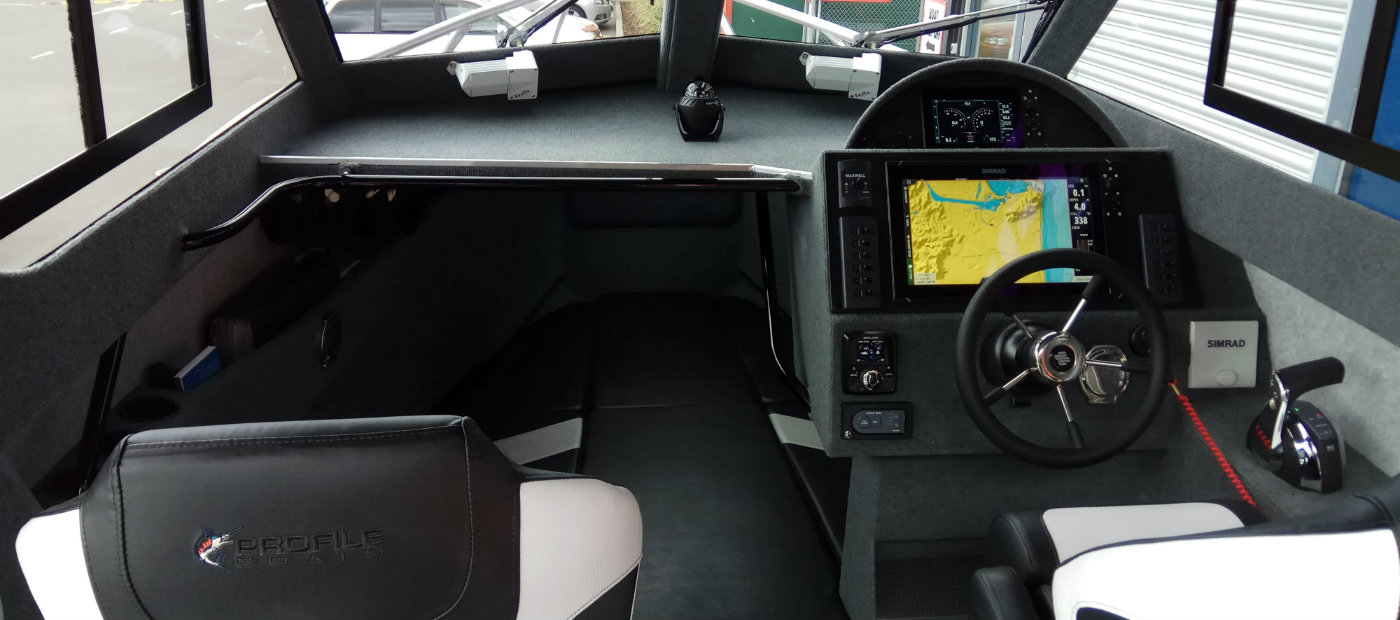

Cabin Area

Sport

Limited

Platinum

Carpeted cabin hardtop and dash

view

Standard

Switc Panel 6 or 12

view

Drink Holders

view

Optional

Window Starboard Sliding

view

Optional

Standard

Grab Rail Roof rooftop and rear cabin X3

view

Standard

Grab rails dash and inside roof X3

view

Standard

Bunks Cabin with Squabs (Vinyl)

view

Standard

Seat King/Queen Drivers Side

view

Optional

Standard

Seat Softrider Pedestal Driver with slider

Standard

Optional

Fully upholstered seats bolster

view

Optional

Standard

Infill Squab

view

Optional

Standard

King/Queen Flip Seat Passenger

view

Standard

VHF Radio

view

Optional

Standard

Windscreen Wiper

view

Optional

Standard

Standard X2

Toilet (porta potti)

view

Optional

Standard

Cooker Gas under passenger seat

view

Optional

Standard

Cooler Box 70l under passenger seat

view

Optional

Standard

Sounder/Plotter/GPS Unit Inches

view

Optional

Stereo Bluetooth

view

Optional

Standard

Marine Compass

view

Optional

Standard

Lights Cabin interior X2. LED

view

Standard

Light, Deck Flood LED

view

Standard

Transom Area

Sport

Limited

Platinum

Battery Compartment Hatch

Optional

Standard

Battery and oil tank shelf/compartment

Standard

Bilge pump and sump

view

Standard

Ladder (T-bar single step) with grab rails

view

Standard

Optional

Ladder (t-bar two step) with grab rails

view

Optional

Standard

Walk Through Transom

view

Optional

Standard

Live Bait Tank under walk through with window

view

Optional

Standard

Twin Batteries

view

Optional

Standard

Baitboard Medium Fixed

view

Optional

Standard

Optional

Baitboard Super Deluxe incl sink, bin & more

view

Optional

Standard

Washdown Pump Kit

view

Optional

Standard

Single Engine Pod 25 Inch

Standard

Transducer Mount Bracket

view

Standard

Transom Wave Deflector

view

Standard

Paint or Vinyl Wrap

Graphics Package

Standard

Paint Full Cabin and Stripe

view

Optional

Standard

Paint Metallic Pearl Upgrade

view

Optional

Standard

Paint Full Interior

view

Optional

Standard

Vinyl Wrap

view

Optional

Standard

Optional

Vinyl Wrap High Gloss

Optional

Standard

Optional

Trailer

Braked front axle

Standard

DMW Premium trailer

view

Standard

LED Lights

view

Standard

Multi Roller Design

Standard

Reg and WOF (NZ)

Standard

Tandem axle

Standard

Tie downs

view

Standard

Wind-up Jockey Wheel

Standard

Other Options

Trim Tabs Auto Zip

Optional

Standard

Trailer Aluminium

view

Optional

Trailer spare wheel and Bracket

Optional

Trailer Guide Poles

view

Optional

Auxilliary Bracket (Alloy)

Optional

Auxuliary Bracket

Optional

Fridge 41l Isotherm

Optional

Standard

Fresh Water 50l

Optional

Standard

Canopy clear drops

view

Optional

Canopy Road Cover

view

Optional

Standard

Canopy Shade Extension

view

Optional

Cray Boom Winch Removable

view

Optional

Sliding Transducer

Optional

Game Poles

view

Optional

Tuna Tubes

view

Optional

Seat Softrider Pedestal passenger

Optional

Seat Upholstered Elite Bolster

Optional

Standard

Seats rear fold down

Optional

Bunk Extensions

view

Optional

Tube Floor Matting

Optional

Port Sliding Window

Optional

Standard

Led Underwater Lights

view

Optional

Standard

Toilet Electric

Optional

Twin Engine Pod

view

Standard

Handrails External Gunwhale

Optional

Safety Items

Flare pack starter

view

Optional

Fire Extinguisher

view

Optional

Life Jackets

view

Optional

EPIRB

view

Optional

Minn Kota (Bracket Only)

Optional

Standard
